Characterization of materials by high resolution optical microscopy with spectral analysis and scanning electron microscopy

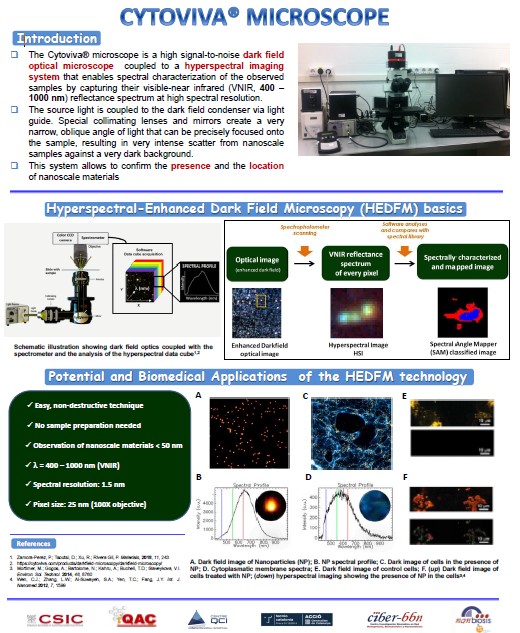

For this service we offer a CytoViva Hyperspectral Imaging System (HSI). The instrument combines enhanced dark field optical microscopy with high resolution spectral imaging. These integrated technologies have been designed to allow optical observation and spectral characterization of nanomaterials and cell matrices. There is no need of sample preparation in advance or fluorescent labelling to observe or characterize spectroscopically nanomaterials in complex media.
We also offer a BX51TRF6 Olympus Optical Microscope that can work with transmitted or reflected light. Different observation methods can be used: bright field, dark field, phase contrast, differential interference contrast, polarized light, and fluorescence. It includes two revolvers to work at short or long distances. Moreover, it is equipped with a digital camera (Olympus DP73) connected to the computer with a software that captures images and videos. A heating stage is available for observations at controlled temperature.
Customer benefits
- Specialized in colloidal samples
- ISO9001 certification for standard quality control system
- Highly qualified and continuously trained staff
- Adapted to customers’ needs
The services provided by the unit are very relevant for product formulation and quality control.Applications include spectral analysis of nanomaterials, characterization of surfaces and functional groups bound to nanomaterials, spectral characterization of biological samples. Also image analysis of micron-sized emulsions, solid dispersions and liquid crystals.
Target customer
Public research organizations, academia and industry in the pharmaceutical, chemical, food and cosmetic sectors.
Additional information
More information can be found at https://www2.iqac.csic.es/qci/
